现在 Backblaze 创建桶的策略发生了变化：必须支付一次性的费用（1 美刀），或者账户有过付费记录才可以创建公开桶（应该是防止滥用），否则只能创建私密桶 (Private Bucket)。
储存在公开桶的图片，直接访问 URL 就能看到。但私密桶的图片不行，访问 URL 是这个结果
新方案
新方案的思路是：
- Backblaze B2 私密桶存储图片。
- Cloudflare Worker 通过应用程序密钥 (Application Key) 实现认证访问 Backblaze B2 私密桶，并缓存图片。
具体流程：
- 用户访问页面，请求图片地址，触发 Cloudflare Worker ，
- Worker 用应用程序密钥签名，访问 Backblaze B2 私密桶，
- Backblaze B2 验证签名，返回图片给 Worker ，
- Worker 显示图片到页面，用户看到图片。
前提条件：
- 注册好 Cloudflare 账户
- 注册好 Backblaze 账户
- 有域名托管在 Cloudflare
- 安装好 PicGo (支持 Win/Mac/Linux 平台)
我们开始吧！
一、创建 Backblaze B2 私密桶
登录 Backblaze ，默认来到桶 (Buckets) 页面。
提示：Backblaze 的中文界面机翻味道实在太浓，请先右下角切换为 English 。

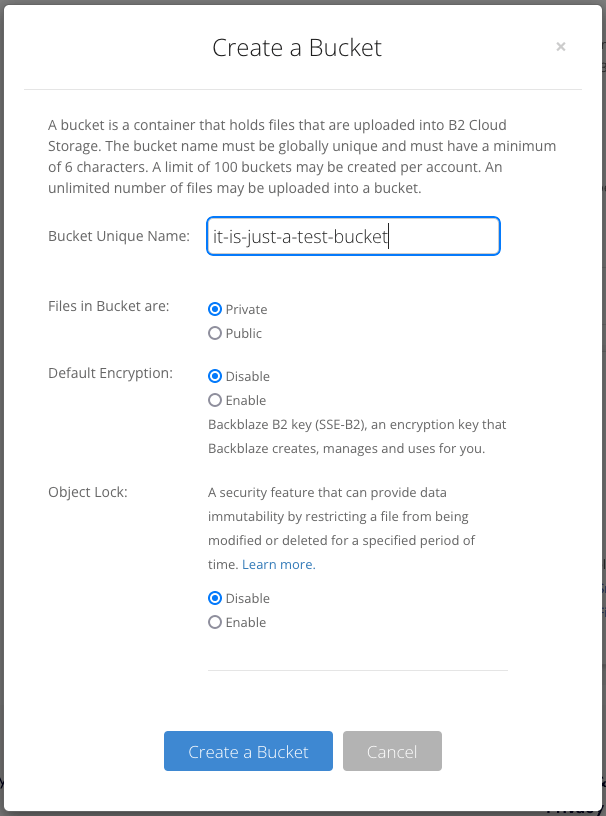

点击 Create a Bucket ，在 Bucket Unique Name 项填入桶名称（我填的 it-is-just-a-test-bucket），其余项保持默认即可。然后点击 Create a Bucket 按钮。

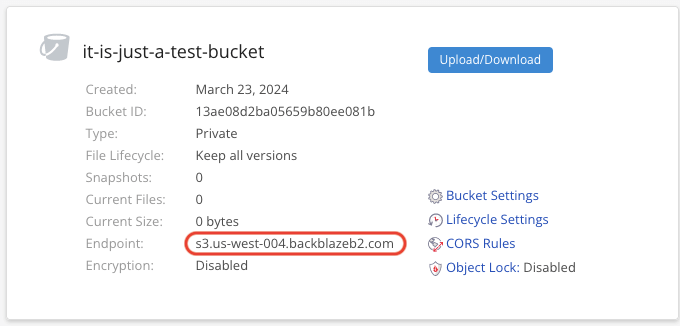

私密桶生成了。记下 Endpoint 的值，后面要用到两次。

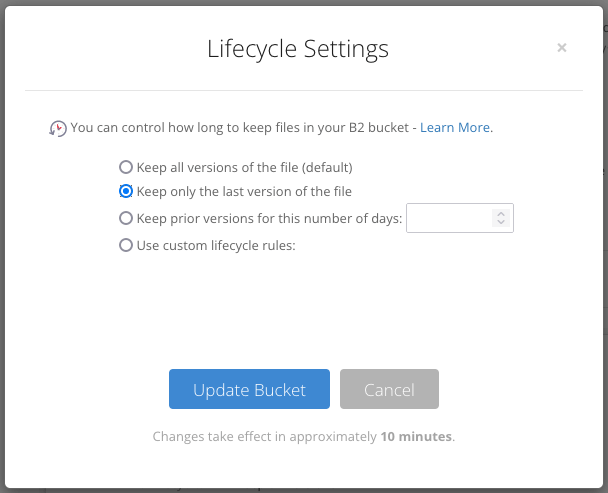

点击 Lifecycle Settings ，选择 Keep only the last version of the file 。点击 Update Bucket 按钮。
二、创建应用程序密钥 (Application Key)

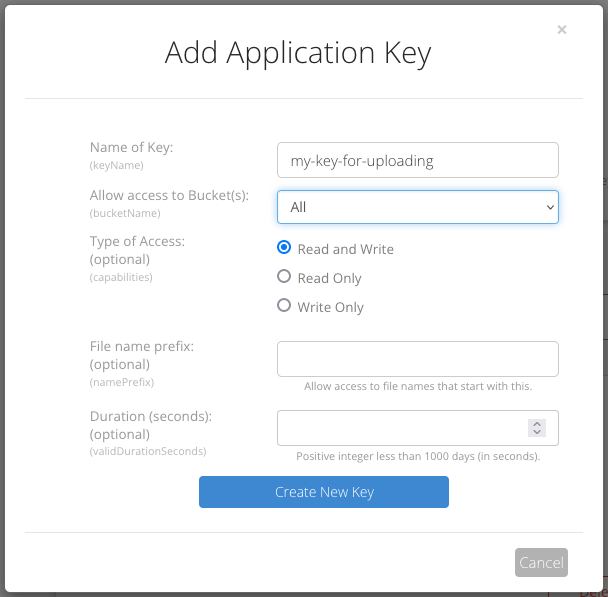

点击页面左侧菜单 Account 项下的 Application Keys ，然后点击 Add a New Application Key ，在 Name of Key 项填写应用程序密钥名称（我填的 my-key-for-uploading），其余保持默认即可。点击 Create New Key 按钮。

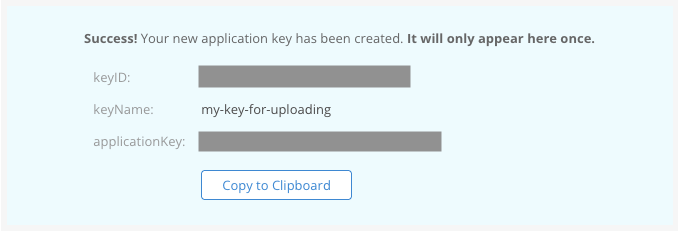

创建应用程序密钥后，复制信息保存好（关掉就不再显示了！），后面要用到两次。
三、创建 Cloudflare Worker
登录 Cloudflare ，点击页面左侧菜单中 Workers 和 Pages ，右侧页面中点击 创建应用程序。
部署 “Hello World” 脚本 页面，填入 Worker 名称（我填的 test-worker），点击 部署 按钮，一个简单的 Worker 就部署好了。
点击 编辑代码 按钮，在页面中把左侧编辑区中的代码替换为以下代码：
// node_modules/aws4fetch/dist/aws4fetch.esm.mjs
var encoder = new TextEncoder();
var HOST_SERVICES = {
appstream2: "appstream",
cloudhsmv2: "cloudhsm",
email: "ses",
marketplace: "aws-marketplace",
mobile: "AWSMobileHubService",
pinpoint: "mobiletargeting",
queue: "sqs",
"git-codecommit": "codecommit",
"mturk-requester-sandbox": "mturk-requester",
"personalize-runtime": "personalize"
};
var UNSIGNABLE_HEADERS = /* @__PURE__ */ new Set([
"authorization",
"content-type",
"content-length",
"user-agent",
"presigned-expires",
"expect",
"x-amzn-trace-id",
"range",
"connection"
]);
var AwsClient = class {
constructor({ accesskeyID, secretAccessKey, sessionToken, service, region, cache, retries, initRetryMs }) {
if (accesskeyID == null)
throw new TypeError("accesskeyID is a required option");
if (secretAccessKey == null)
throw new TypeError("secretAccessKey is a required option");
this.accesskeyID = accesskeyID;
this.secretAccessKey = secretAccessKey;
this.sessionToken = sessionToken;
this.service = service;
this.region = region;
this.cache = cache || /* @__PURE__ */ new Map();
this.retries = retries != null ? retries : 10;
this.initRetryMs = initRetryMs || 50;
}
async sign(input, init) {
if (input instanceof Request) {
const { method, url, headers, body } = input;
init = Object.assign({ method, url, headers }, init);
if (init.body == null && headers.has("Content-Type")) {
init.body = body != null && headers.has("X-Amz-Content-Sha256") ? body : await input.clone().arrayBuffer();
}
input = url;
}
const signer = new AwsV4Signer(Object.assign({ url: input }, init, this, init && init.aws));
const signed = Object.assign({}, init, await signer.sign());
delete signed.aws;
try {
return new Request(signed.url.toString(), signed);
} catch (e) {
if (e instanceof TypeError) {
return new Request(signed.url.toString(), Object.assign({ duplex: "half" }, signed));
}
throw e;
}
}
async fetch(input, init) {
for (let i = 0; i <= this.retries; i++) {
const fetched = fetch(await this.sign(input, init));
if (i === this.retries) {
return fetched;
}
const res = await fetched;
if (res.status < 500 && res.status !== 429) {
return res;
}
await new Promise((resolve) => setTimeout(resolve, Math.random() * this.initRetryMs * Math.pow(2, i)));
}
throw new Error("An unknown error occurred, ensure retries is not negative");
}
};
var AwsV4Signer = class {
constructor({ method, url, headers, body, accesskeyID, secretAccessKey, sessionToken, service, region, cache, datetime, signQuery, appendSessionToken, allHeaders, singleEncode }) {
if (url == null)
throw new TypeError("url is a required option");
if (accesskeyID == null)
throw new TypeError("accesskeyID is a required option");
if (secretAccessKey == null)
throw new TypeError("secretAccessKey is a required option");
this.method = method || (body ? "POST" : "GET");
this.url = new URL(url);
this.headers = new Headers(headers || {});
this.body = body;
this.accesskeyID = accesskeyID;
this.secretAccessKey = secretAccessKey;
this.sessionToken = sessionToken;
let guessedService, guessedRegion;
if (!service || !region) {
[guessedService, guessedRegion] = guessServiceRegion(this.url, this.headers);
}
this.service = service || guessedService || "";
this.region = region || guessedRegion || "us-east-1";
this.cache = cache || /* @__PURE__ */ new Map();
this.datetime = datetime || (/* @__PURE__ */ new Date()).toISOString().replace(/[:-]|\.\d{3}/g, "");
this.signQuery = signQuery;
this.appendSessionToken = appendSessionToken || this.service === "iotdevicegateway";
this.headers.delete("Host");
if (this.service === "s3" && !this.signQuery && !this.headers.has("X-Amz-Content-Sha256")) {
this.headers.set("X-Amz-Content-Sha256", "UNSIGNED-PAYLOAD");
}
const params = this.signQuery ? this.url.searchParams : this.headers;
params.set("X-Amz-Date", this.datetime);
if (this.sessionToken && !this.appendSessionToken) {
params.set("X-Amz-Security-Token", this.sessionToken);
}
this.signableHeaders = ["host", ...this.headers.keys()].filter((header) => allHeaders || !UNSIGNABLE_HEADERS.has(header)).sort();
this.signedHeaders = this.signableHeaders.join(";");
this.canonicalHeaders = this.signableHeaders.map((header) => header + ":" + (header === "host" ? this.url.host : (this.headers.get(header) || "").replace(/\s+/g, " "))).join("\n");
this.credentialString = [this.datetime.slice(0, 8), this.region, this.service, "aws4_request"].join("/");
if (this.signQuery) {
if (this.service === "s3" && !params.has("X-Amz-Expires")) {
params.set("X-Amz-Expires", "86400");
}
params.set("X-Amz-Algorithm", "AWS4-HMAC-SHA256");
params.set("X-Amz-Credential", this.accesskeyID + "/" + this.credentialString);
params.set("X-Amz-SignedHeaders", this.signedHeaders);
}
if (this.service === "s3") {
try {
this.encodedPath = decodeURIComponent(this.url.pathname.replace(/\+/g, " "));
} catch (e) {
this.encodedPath = this.url.pathname;
}
} else {
this.encodedPath = this.url.pathname.replace(/\/+/g, "/");
}
if (!singleEncode) {
this.encodedPath = encodeURIComponent(this.encodedPath).replace(/%2F/g, "/");
}
this.encodedPath = encodeRfc3986(this.encodedPath);
const seenKeys = /* @__PURE__ */ new Set();
this.encodedSearch = [...this.url.searchParams].filter(([k]) => {
if (!k)
return false;
if (this.service === "s3") {
if (seenKeys.has(k))
return false;
seenKeys.add(k);
}
return true;
}).map((pair) => pair.map((p) => encodeRfc3986(encodeURIComponent(p)))).sort(([k1, v1], [k2, v2]) => k1 < k2 ? -1 : k1 > k2 ? 1 : v1 < v2 ? -1 : v1 > v2 ? 1 : 0).map((pair) => pair.join("=")).join("&");
}
async sign() {
if (this.signQuery) {
this.url.searchParams.set("X-Amz-Signature", await this.signature());
if (this.sessionToken && this.appendSessionToken) {
this.url.searchParams.set("X-Amz-Security-Token", this.sessionToken);
}
} else {
this.headers.set("Authorization", await this.authHeader());
}
return {
method: this.method,
url: this.url,
headers: this.headers,
body: this.body
};
}
async authHeader() {
return [
"AWS4-HMAC-SHA256 Credential=" + this.accesskeyID + "/" + this.credentialString,
"SignedHeaders=" + this.signedHeaders,
"Signature=" + await this.signature()
].join(", ");
}
async signature() {
const date = this.datetime.slice(0, 8);
const cacheKey = [this.secretAccessKey, date, this.region, this.service].join();
let kCredentials = this.cache.get(cacheKey);
if (!kCredentials) {
const kDate = await hmac("AWS4" + this.secretAccessKey, date);
const kRegion = await hmac(kDate, this.region);
const kService = await hmac(kRegion, this.service);
kCredentials = await hmac(kService, "aws4_request");
this.cache.set(cacheKey, kCredentials);
}
return buf2hex(await hmac(kCredentials, await this.stringToSign()));
}
async stringToSign() {
return [
"AWS4-HMAC-SHA256",
this.datetime,
this.credentialString,
buf2hex(await hash(await this.canonicalString()))
].join("\n");
}
async canonicalString() {
return [
this.method.toUpperCase(),
this.encodedPath,
this.encodedSearch,
this.canonicalHeaders + "\n",
this.signedHeaders,
await this.hexBodyHash()
].join("\n");
}
async hexBodyHash() {
let hashHeader = this.headers.get("X-Amz-Content-Sha256") || (this.service === "s3" && this.signQuery ? "UNSIGNED-PAYLOAD" : null);
if (hashHeader == null) {
if (this.body && typeof this.body !== "string" && !("byteLength" in this.body)) {
throw new Error("body must be a string, ArrayBuffer or ArrayBufferView, unless you include the X-Amz-Content-Sha256 header");
}
hashHeader = buf2hex(await hash(this.body || ""));
}
return hashHeader;
}
};
async function hmac(key, string) {
const cryptoKey = await crypto.subtle.importKey(
"raw",
typeof key === "string" ? encoder.encode(key) : key,
{ name: "HMAC", hash: { name: "SHA-256" } },
false,
["sign"]
);
return crypto.subtle.sign("HMAC", cryptoKey, encoder.encode(string));
}
async function hash(content) {
return crypto.subtle.digest("SHA-256", typeof content === "string" ? encoder.encode(content) : content);
}
function buf2hex(buffer) {
return Array.prototype.map.call(new Uint8Array(buffer), (x) => ("0" + x.toString(16)).slice(-2)).join("");
}
function encodeRfc3986(urlEncodedStr) {
return urlEncodedStr.replace(/[!'()*]/g, (c) => "%" + c.charCodeAt(0).toString(16).toUpperCase());
}
function guessServiceRegion(url, headers) {
const { hostname, pathname } = url;
if (hostname.endsWith(".r2.cloudflarestorage.com")) {
return ["s3", "auto"];
}
if (hostname.endsWith(".backblazeb2.com")) {
const match2 = hostname.match(/^(?:[^.]+\.)?s3\.([^.]+)\.backblazeb2\.com$/);
return match2 != null ? ["s3", match2[1]] : ["", ""];
}
const match = hostname.replace("dualstack.", "").match(/([^.]+)\.(?:([^.]*)\.)?amazonaws\.com(?:\.cn)?$/);
let [service, region] = (match || ["", ""]).slice(1, 3);
if (region === "us-gov") {
region = "us-gov-west-1";
} else if (region === "s3" || region === "s3-accelerate") {
region = "us-east-1";
service = "s3";
} else if (service === "iot") {
if (hostname.startsWith("iot.")) {
service = "execute-api";
} else if (hostname.startsWith("data.jobs.iot.")) {
service = "iot-jobs-data";
} else {
service = pathname === "/mqtt" ? "iotdevicegateway" : "iotdata";
}
} else if (service === "autoscaling") {
const targetPrefix = (headers.get("X-Amz-Target") || "").split(".")[0];
if (targetPrefix === "AnyScaleFrontendService") {
service = "application-autoscaling";
} else if (targetPrefix === "AnyScaleScalingPlannerFrontendService") {
service = "autoscaling-plans";
}
} else if (region == null && service.startsWith("s3-")) {
region = service.slice(3).replace(/^fips-|^external-1/, "");
service = "s3";
} else if (service.endsWith("-fips")) {
service = service.slice(0, -5);
} else if (region && /-\d$/.test(service) && !/-\d$/.test(region)) {
[service, region] = [region, service];
}
return [HOST_SERVICES[service] || service, region];
}
// index.js
var UNSIGNABLE_HEADERS2 = [
// These headers appear in the request, but are not passed upstream
"x-forwarded-proto",
"x-real-ip",
// We can't include accept-encoding in the signature because Cloudflare
// sets the incoming accept-encoding header to "gzip, br", then modifies
// the outgoing request to set accept-encoding to "gzip".
// Not cool, Cloudflare!
"accept-encoding"
];
var HTTPS_PROTOCOL = "https:";
var HTTPS_PORT = "443";
var RANGE_RETRY_ATTEMPTS = 3;
function filterHeaders(headers, env) {
return new Headers(Array.from(headers.entries()).filter(
(pair) => !UNSIGNABLE_HEADERS2.includes(pair[0]) && !pair[0].startsWith("cf-") && !("ALLOWED_HEADERS" in env && !env.ALLOWED_HEADERS.includes(pair[0]))
));
}
var my_proxy_default = {
async fetch(request, env) {
if (!["GET", "HEAD"].includes(request.method)) {
return new Response(null, {
status: 405,
statusText: "Method Not Allowed"
});
}
const url = new URL(request.url);
url.protocol = HTTPS_PROTOCOL;
url.port = HTTPS_PORT;
let path = url.pathname.replace(/^\//, "");
path = path.replace(/\/$/, "");
const pathSegments = path.split("/");
if (env.ALLOW_LIST_BUCKET !== "true") {
if (env.BUCKET_NAME === "$path" && pathSegments.length < 2 || env.BUCKET_NAME !== "$path" && path.length === 0) {
return new Response(null, {
status: 404,
statusText: "Not Found"
});
}
}
switch (env.BUCKET_NAME) {
case "$path":
url.hostname = env.B2_ENDPOINT;
break;
case "$host":
url.hostname = url.hostname.split(".")[0] + "." + env.B2_ENDPOINT;
break;
default:
url.hostname = env.BUCKET_NAME + "." + env.B2_ENDPOINT;
break;
}
const headers = filterHeaders(request.headers, env);
const endpointRegex = /^s3\.([a-zA-Z0-9-]+)\.backblazeb2\.com$/;
const [, aws_region] = env.B2_ENDPOINT.match(endpointRegex);
const client = new AwsClient({
"accesskeyID": env.B2_APPLICATION_KEY_ID,
"secretAccessKey": env.B2_APPLICATION_KEY,
"service": "s3",
"region": aws_region
});
const signedRequest = await client.sign(url.toString(), {
method: request.method,
headers
});
if (signedRequest.headers.has("range")) {
let attempts = RANGE_RETRY_ATTEMPTS;
let response;
do {
let controller = new AbortController();
response = await fetch(signedRequest.url, {
method: signedRequest.method,
headers: signedRequest.headers,
signal: controller.signal
});
if (response.headers.has("content-range")) {
if (attempts < RANGE_RETRY_ATTEMPTS) {
console.log(`Retry for ${signedRequest.url} succeeded - response has content-range header`);
}
break;
} else if (response.ok) {
attempts -= 1;
console.error(`Range header in request for ${signedRequest.url} but no content-range header in response. Will retry ${attempts} more times`);
if (attempts > 0) {
controller.abort();
}
} else {
break;
}
} while (attempts > 0);
if (attempts <= 0) {
console.error(`Tried range request for ${signedRequest.url} ${RANGE_RETRY_ATTEMPTS} times, but no content-range in response.`);
}
return response;
}
return fetch(signedRequest);
}
};
export {
my_proxy_default as default
};
/*! Bundled license information:
aws4fetch/dist/aws4fetch.esm.mjs:
(**
* @license MIT <https://opensource.org/licenses/MIT>
* @copyright Michael Hart 2022
*)
*/
//# sourceMappingURL=index.js.map然后点击 保存并部署 按钮。
四、配置 Cloudflare Worker
返回新创建的 Worker 页面，点击上方 设置 选项卡，再点击左侧 变量 。
点击 添加变量 按钮，依次添加 5 个变量，变量名称 和 值 分别为：
ALLOW_LIST_BUCKET = false
B2_APPLICATION_KEY = 第二步保存的 applicationKey
B2_APPLICATION_KEY_ID = 第二步保存的 keyID
B2_ENDPOINT = 第一步记下的 Endpoint 值（如 s3.us-west-004.backblazeb2.com）

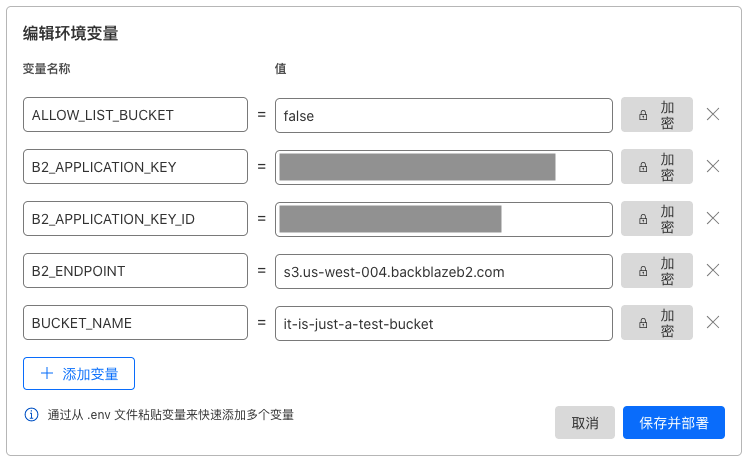

BUCKET_NAME = 私密桶名（如 it-is-just-a-test-bucket）添加完后，如下图所示：
为安全起见，输入完 B2_APPLICATION_KEY 的值后，点击右侧的 加密 按钮，会显示 此值在保存后无法再进行查看 。
点击 保存并部署 按钮，完成部署。
五、自定义域名
点击左侧 触发器 ，然后点击 添加自定义域 按钮：
六、配置 Backblaze B2 私密桶#
回到 Backblaze ，定位到新建的私密桶，点击 Bucket Settings ：
在 Bucket Info 项填入：
{"Cache-Control": "public, max-age=86400"} 提示：86400 表示缓存一天，可以设置更大。
最后点击 Update Bucket 按钮。
七、访问测试
- 上传图片到私密桶
定位到新建的私密桶，点击 Upload/Download 按钮，然后继续点击 Upload 按钮，上传一个图片（如 test-image.jpg）。
- 访问测试
直接访问 S3 URL (https://it-is-just-a-test-bucket.s3.us-west-004.backblazeb2.com/test-image.jpg) 是看不到图片的。
访问自定义域名的 URl (https://test.standat42.com/test-image.jpg) 则可以看到图片。
